    SELF-CLEANING CHOPPER PUMPS WITH SUSTAINED HIGH EFF ICIENCY

    Flygt’s self-cleaning and energy-efficient chopper pumps are specifically designed for heavy-duty applications and continuous operation with sustained high efficiency in your toughest applications such as wastewater, sludge, and agricultural applications. They deliver unrivaled sustained high efficiency and operational reliability thanks to their unique cutting action.

    Flygt F-pumps are available for capacities up to 200 l/s (3200 gpm), with motors from 1.7 to 47 kW (2 to 65 hp) and discharge heads up to 81m

    Flygt F-pumps feature patented Flygt N-technology. All components work together without sacrificing the pump's overall hydraulic performance,
    and the pump efficiency remains consistent without sacrificing its superior solids passing properties. The F-pump cuts through all types of tough and difficult solids, making it virtually clog-free. Flygt F-pumps demonstrate unmatched reliability in installations worldwide. Flygt chopper pumps perform like no other, handling whatever goes down the drain – from plastic bottles, fibrous material and wood to clothing and motor cables. Impeller and cutter plate are made of Hard-Iron™ and Active Seal™ for long service intervals.​​



    Rough and rugged, Flygt F-pumps
    tackle the toughest wastewater challenges.
    By cutting solids or fibers
    down to size, Flygt chopper pumps
    ensure reliable, trouble-free operation
    that’s energy efficient, too.

    Buy a ready-to-use Flygt F-pump or
    upgrade your Flygt N-pump for outstanding
    performance in heavy-duty
    wastewater applications.

    Well proven performance
    Flygt F-pumps demonstrate unmatched
    reliability in installations
    worldwide. These chopper pumps
    perform like no other, handling whatever
    goes down the drain – from plastic
    bottles and wood to clothing and
    motor cables.

    Cost-effective operation
    Flygt F-pumps transport tough solids
    and reduce operation and maintenance
    costs, too. Under extreme conditions,
    our energy-efficient chopper
    pumps run continuously with sustained
    hydraulic efficiency in heavyduty
    applications such as:

    • Heavy-duty wastewater applications
    • Food processing facilities
    • Pulp and paper mills
    • Heavy-duty sludge pumping
    • Aqua culture
    • Agricultural facilities
    • Correctional facilities
    • Public access facilities

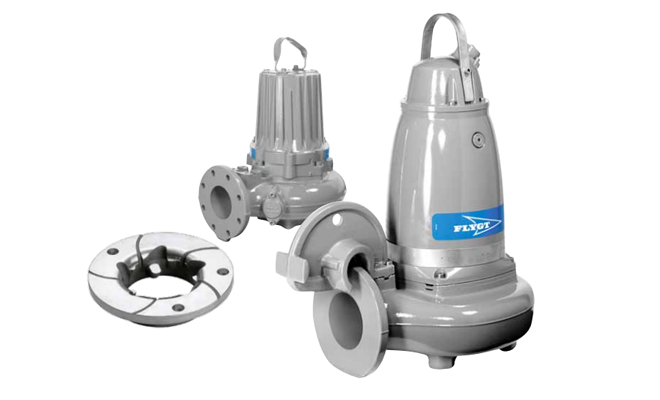

    Chop it up with the proven N-impeller

    Advanced N-technology
    Flygt F-pumps feature patented Flygt N-technology, which is renowned
    for its self-cleaning capabilities and sustained high efficiency.

    Virtually maintenance free

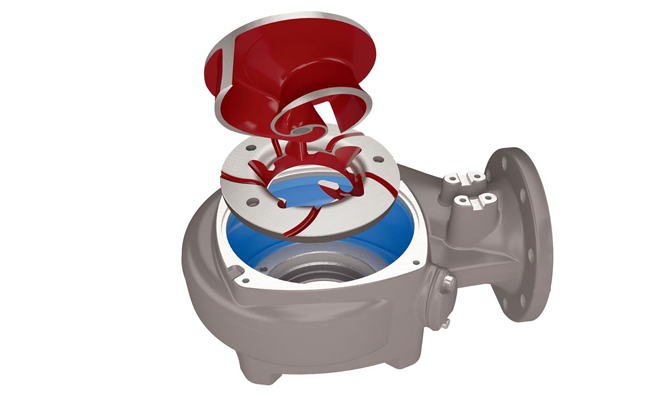

    Flygt F-pumps feature the patented Flygt N-impeller, which rotates inside
    a chopper insert ring. This rotation cuts all types of hard-to-pump solids,
    such as fibrous material, textiles and other debris into small, easy-to-pump pieces.

    Self-cleaning components
    To prevent clogging, the Flygt N-impeller features a backswept design
    which together with the relief groove in the insert ring sweeps solid
    objects along the leading edge.

    Sustained high efficiency
    All components work together without sacrificing the pump’s overall
    hydraulic performance. Pump efficiency consistently remains high
    while keeping energy costs low.

    Wear-resistant material
    Flygt F-pump components consist of Hard-Iron material (HRC 60),
    which has proven to have exceptional wear resistance in tough
    wastewater applications.

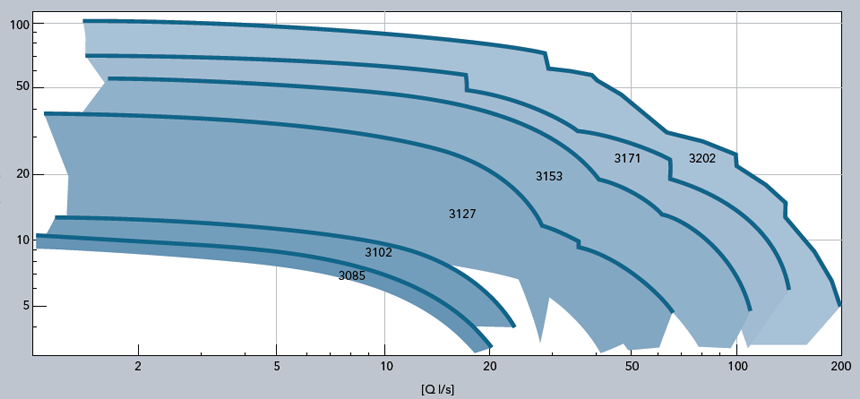

    Comprehensive range of F-pumps

    The Flygt F-pump range includes seven models, that handle capacities up to 200 l/s. Designed for minimal downtime and low
    total cost of ownership, Flygt F-pumps provide advanced technical solutions for handling hard-to-pump solids.

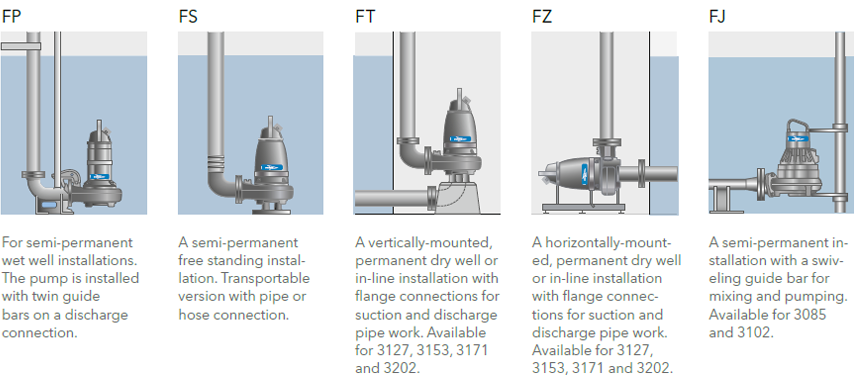

    Installations
