FLYGT 5000 SERIES PUMPS







    THE TROUBLESHOOTERS FROM FLYGT

    Slurry sumps can be a headache. Pumps wear hard and fast. They need service between maintenance intervals. And to make matters worse, the
    sumps fill up with sediment.

    Cantilever pumps are often not up to the task. We know, because that’s when Xylem gets the call: When an installed slurry pump is struggling to do its job.

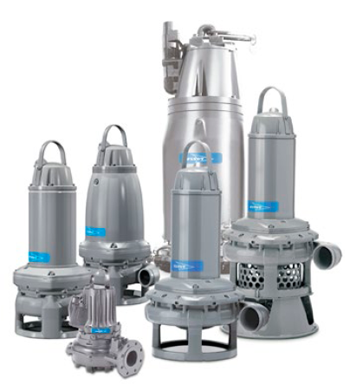

    With a wide range of pumps, plus a flexible modular system, Flygt can supply exactly the right pump for any application.

    THEY JUST RUN

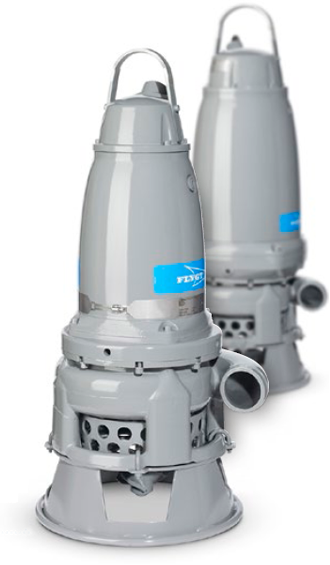

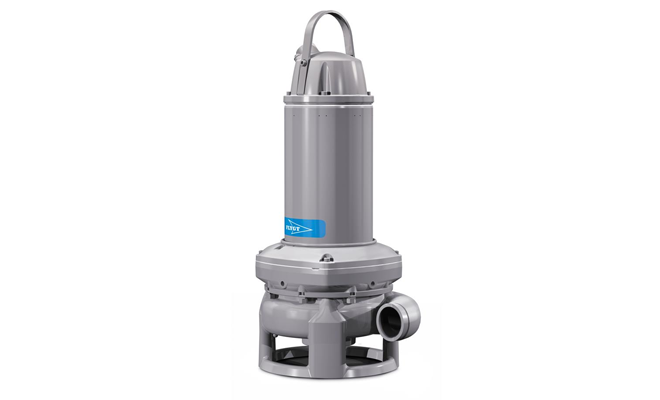

    The Flygt H 5100 slurry pump is different. Following a planned maintenance schedule, this Flygt pump can work in even the coarsest, heaviest slurries
    and keep sumps solids free.





    Flygt submersible slurry pumps offer many advantages over dry
    installed pumps. Some we have already described on the facing
    page. Here are a few more.

    Low construction costs
    Operating directly in the slurry, a submersible slurry pump requires
    no support superstructure. Submersibles therefore reduce
    construction costs and occupy less space.

    Easy to install, easy to move
    Submersible pumps are easy to install because the motor and volute

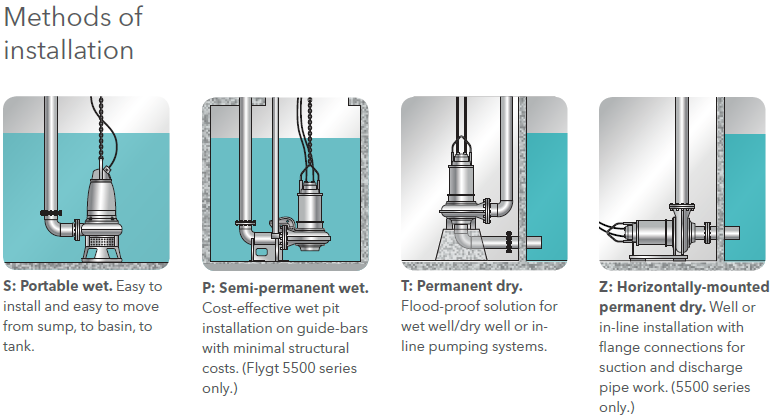

    form a single integrated unit. With four different installation methods
    to choose from (see page 8) you can use one Flygt slurry pump in
    any number of sumps, basins and tanks.

    Reliable operation
    Once installed, submersible pumps require almost no
    supervision. Since there are no long or exposed mechanical
    links between the motor and the volute, less maintenance is
    required, and operating costs are significantly lower.

    Quiet and flood-proof
    With a motor that operates beneath the surface, a submersible
    pump produces very little noise. And of course, a submersible
    pump is, by definition, completely flood-proof.






    With a wide range of pumps, plus a flexible modular system, Flygt can supply exactly the right pump for any application..

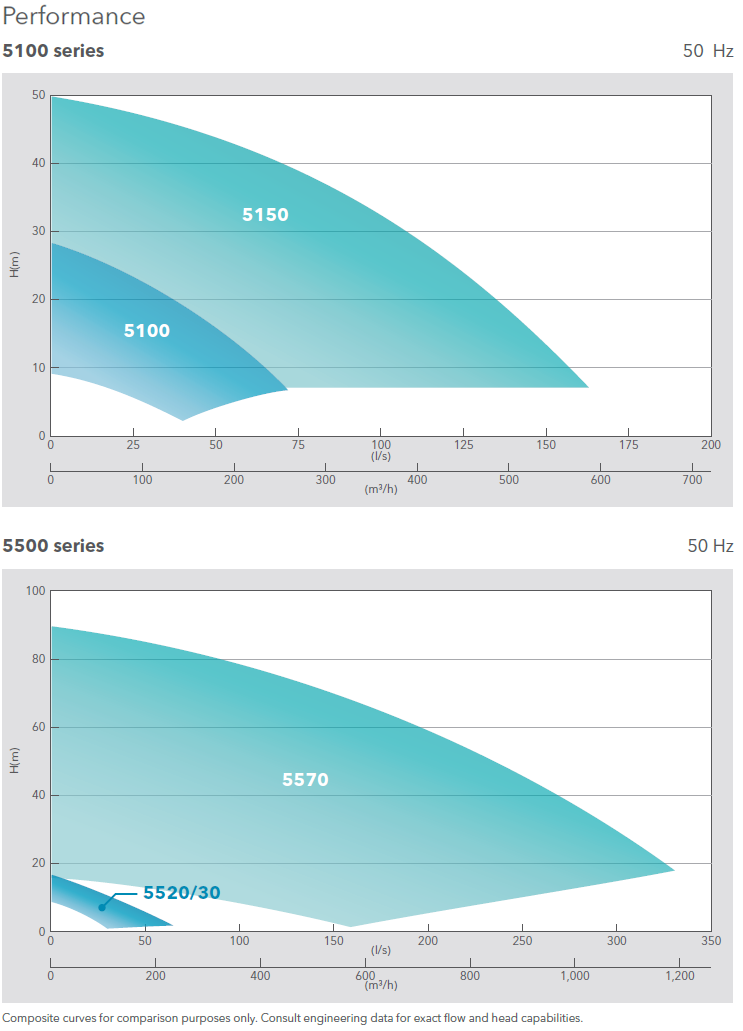

    Flygt slurry pumps at a glance:
    • Flow: 30 — 320 liters per second
    • Head: 10 —88 meters
    • Throughlet: 36 — 60 mm
