A new level of sanitary performance. Long-life engineering features.

Sanitary Features
• Front loading seal design

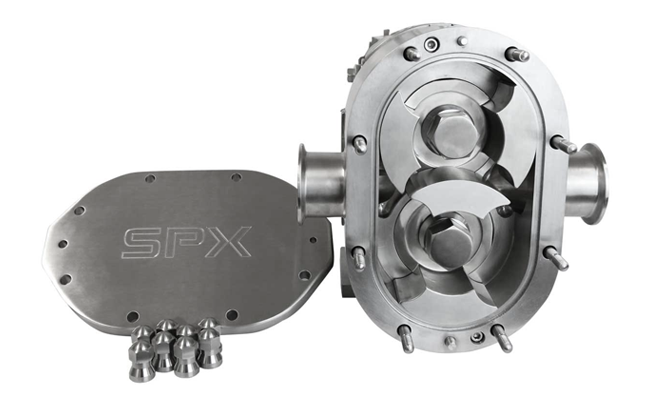

• CIP capable standard. Pump rotor has internal flats and will free drain with vertical ports.
• Cover is free draining in horizontal or vertical port positions.
• Rotor/shaft connection is completely sealed from product zone and reduces the risk of corrosion.
• Single mechanical seals standard. Optional double mechanical seals, o-ring and lip seals also available. Ability to switch seal types
without additional machining.
• Cover seal is a profile design to improve cleanability and resist particulates from being "pinched" and trapped.
• Stainless steel gear case and bearing frame standard.
• Aseptic fittings available.
• Seal flush and steam-in-place optional.

Long-life Features
• Up to 500 psi (34.5 bar) pressure capability.
• Pumps rated to 300°F (149°C) as standard.
• Special rotor nut designed for extended service without loosening.
• No bearings in the product zone.

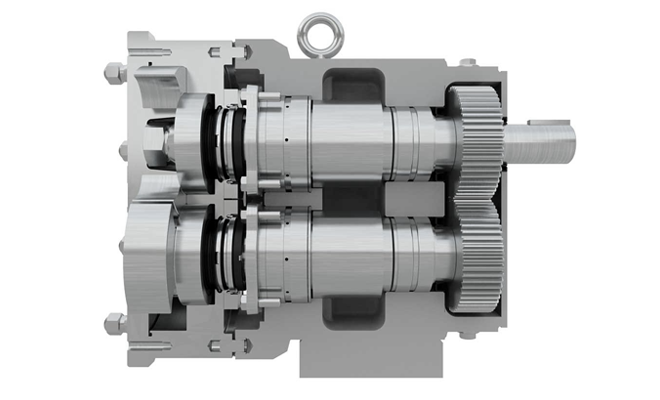

• New shafts are shorter and have larger diameter 17-4 PH shafts:
- Reduces overhung load which improves shaft alignment and decreases seal and bearing wear for extended seal life.
- Improves shaft strength and stiffness helping to eliminate vibration
• Heavy duty stainless steel bearing frame standard.
• Double tapered roller bearings.
• Greased lubed bearings for positive lubrication to all bearings over entire speed, temperature and pressure range.
• Body retaining screws for maintaining mechanical seal contact during inspection.
• Extended outer seal life. A wave spring, instead of an O-ring, mechanically loads the seal.
• Unique mechanical seal design utilizes 2 pin stationary seal and special design shaft for rotary seal.
