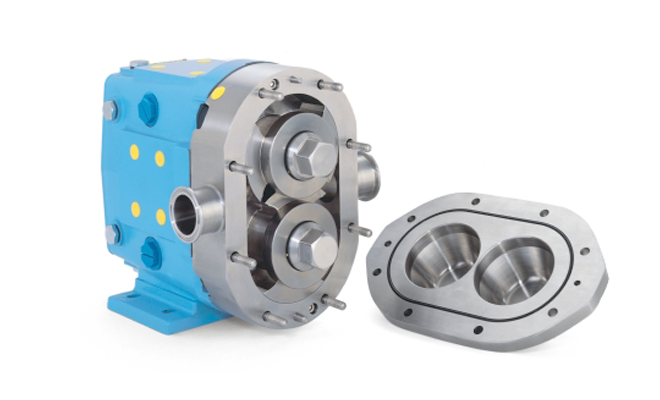

Universal 2 Series pumps include advanced sanitation technologies,
long life features and installation flexibility.

Sanitation features
• CIP capability available. Pump body has optional internal flat body profile and will free drain with vertical ports.
•Optional rotor and body hub drilling provided for difficult CIP cleaning applications.
• Cover is free draining in horizontal or vertical port positions.
• Rotor/shaft connection sealed from product zone.
• Single mechanical seals standard. Optional double mechanical seals also available.
• Seal flush optional: seal areas interconnected to improve circulation and draining of seal flush fluid.
• Steam-In-Place also is optional.
• Stainless steel bearing frame optional on models 006 to 220.
• Aseptic design (Option)

Long-life features
• Up to 500 psi (34.5 bar) pressure capability.
• Special rotor nut designed for extended service without loosening.
• No bearings in the product zone.
• Larger diameter 17-4 PH shafts for greater strength and stiffness. Helps eliminate vibration; extends seal life.
• Heavy duty bearing frame (stainless steel available as an option).
• Double tapered roller bearings.
• Greased lubed bearings for positive lubrication to all bearings over entire speed, temperature and pressure range.
• Body retaining screws for maintaining mechanical seal contact during inspection.
• Extended outer seal life. A wave spring, instead of an O-ring, mechanically loads the seal.
• O-Ring on inner seal, seals on clean surface as seal moves due to wear.
• Unique mechanical seal design utilizes 3 pin stationary seal and special design shaft for rotary seal.

Available options
*High strength 17-4 PH shafts and hex cover nuts for higher pressure applications

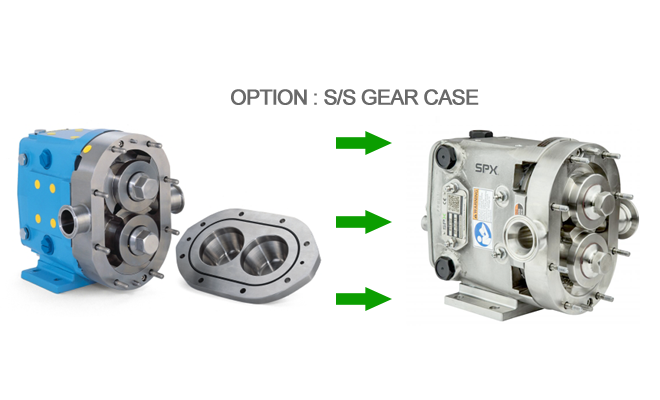

• Stainless steel gear case
• Stainless steel bearing retainers
• Bearing isolators protect bearings from contamination
• Body retaining screws
• Steel-It paint
• Single wing rotors for minimum damage of particulates.
• Jacketed or vented covers
• Rectangular flange inlet for high viscosity products
• Tru-Fit® close coupled pump design

Specifications
