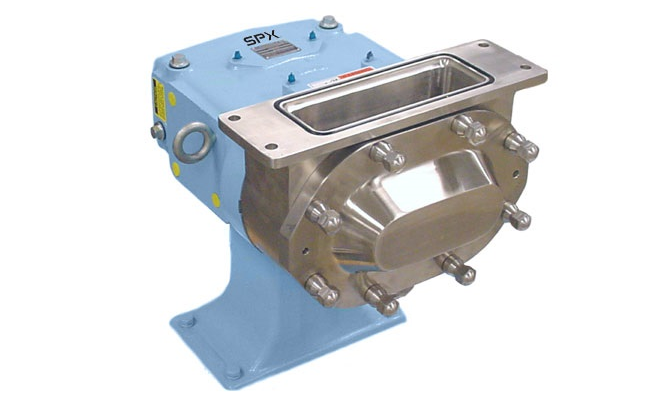

Six models feature inlet ports ranging in size from 7.13 to 86.87 square inches.
Features and Benefits
-
316 stainless steel body
- Large, rectangular inlet port
- Non-galling Waukesha "88" alloy rotors
- Maximum pressure: 200 psi (13.8 bar)*
- Temperature range:-40° F (-40° C) to 300° F (149° C)
Specifications
MODEL
|
DISPLACEMENT
PER REVOLUTION
|
NOMINAL
CAPACITY TO
|
MAXIMUM
PRESSURE
|
| 014-UII |
0.0142 GAL. (0.054 Liter) |
5.68 GPM (1.3 m³/hr.) |
200 PSI (13.8 bar) |
| 034-UII |
0.060 GAL. (0.227 Liter) |
24 GPM (5.5 m³/hr.) |
250 PSI (17.2 bar) |
| 064-UII |
0.153 GAL. (0.579 Liter) |
61 GPM (13.9 m³/hr.) |
300 PSI (20.7 bar) |
| 134-UII |
0.253 GAL. (.958 Liter) |
101 GPM (22.9 m³/hr.) |
200 PSI (13.8 bar) |
184-UII |
0.380 GAL. (1.438 Liter) |
152 GPM (34.5 m³/hr.) |
450 PSI (31.0 bar) |
| 214-UII |
0.502 GAL. (1.90 Liter) |
200 GPM (45.4 m³/hr.) |
500 PSI (34.5 bar) |
| 224-UII |
0.521 GAL. (1.972 Liter) |
208 GPM (47.2 m³/hr.) |
300 PSI (20.7 bar) |
| 324-UII |
0.752 GAL. (2.847 Liter) |
300 GPM (68.1 m³/hr.) |
300 PSI (20.7 bar) |
|
