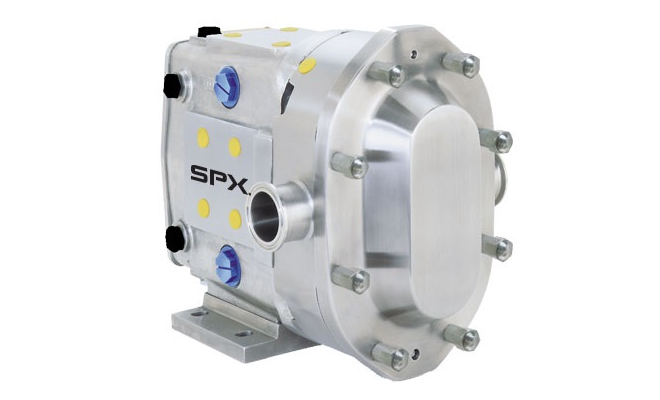

With advanced features of the Universal II PD pump, the Universal II Bio-Pharmaceutical is
designed for the special requirements of pharmaceutical and biotech processes.
Sanitation features
• 316L stainless steel rotors standard; non-galling Waukesha "88" alloy rotors optional
• 316L stainless steel product contact surfaces standard; 316L stainless steel or electropolish of all product contact surfaces optional
• Stainless steel bearing frame
• Additional option: seal flush
• Maximum pressure: 200-300 psi (13.8-20.7 bar), depending on model
• Maximum temperature: -40°F (-40°C) to 300°F (149°C)
Specifications
MODEL |
DISPLACEMENT
|
NOMINAL
CAPACITY TO |
INLET/ OUTLET |
PRESSURE
PSI |
MAX
RPM |
| 006-UB |
.008 GAL. (.03 Liter) |
5.2 GPM (1.5 m³/hr.) |
1" |
300 |
900 |
| 015-UB |
.014 GAL. (.05 Liter) |
11.6 GPM (1.8 m³/hr.) |
1" |
250 |
800 |
| 018-UB |
.029 GAL. (.11 Liter) |
24 GPM (3.9 m³/hr.) |
1" |
200 |
700 |
| 030-UB |
.06 GAL. (.23 Liter) |
60 GPM (8.2 m³/hr.) |
1" |
250 |
600 |
| 060-UB |
.15 GAL. (.57 Liter) |
100 GPM (20.4 m³/hr.) |
2" |
250 |
600 |
| 130-UB |
.25 GAL. (.95 Liter) |
200 GPM (34.1 m³/hr.) |
3" |
200 |
600 |
| 220-UB |
.52 GAL. (1.93 Liter) |
300 GPM (68.1 m³/hr.) |
4" |
200 |
600 |
|
