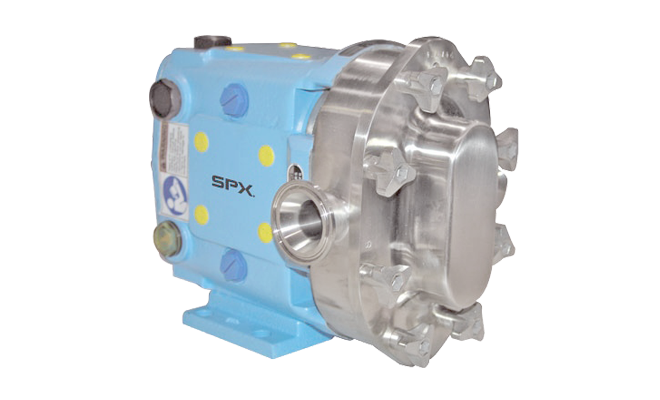

Universal 1 Series - Standard

    Previous line
    Next line





    Specifically designed to pump "unpumpable" products; such as dough, meat emulsion, puddings and cheese, that cause bridging and
    cavitation in conventional pumps. Six models feature inlet ports ranging in size from 7.13 to 86.87 square inches.

    Features and Benefits
    - 316 stainless steel body
    - Large, rectangular inlet port
    - Non-galling Waukesha "88" alloy rotors
    - Maximum pressure: 200 psi (13.8 bar)*
    - Temperature range:-40° F (-40° C) to 300° F (149° C)

    Specifications

    MODEL
    DISPLACEMENT  PER REVOLUTION
    NOMINAL  CAPACITY TO
    MAXIMUM  PRESSURE
    006-UI 0.0082 GAL. (0.031 Liter) 6 GPM (1.3 m³/hr.) 200 PSI (13.8 bar)
    015-UI 0.0142 GAL. (0.054 Liter) 9 GPM (2.0 m³/hr.) 200 PSI (13.8 bar)
    018-UI 0.029 GAL. (0.110 Liter) 17 GPM (3.8 m³/hr.) 200 PSI (13.8 bar)
    030-UI 0.060 GAL. (0.227 Liter) 36 GPM (8.2 m³/hr.) 200 PSI (13.8 bar)
    040-UI
    0.076 GAL. (0.288 Liter)
    45 GPM (10.2 m³/hr.)
    150 PSI (10.3 bar)
    060-UI 0.153 GAL. (0.579 Liter) 90 GPM (20.4 m³/hr.) 200 PSI (13.8 bar)
    130-UI 0.254 GAL. (0.961 Liter) 150 GPM (34.1 m³/hr.) 200 PSI (13.8 bar)
    220-UI 0.522 GAL. (1.976 Liter) 310 GPM (70.4 m³/hr.) 200 PSI (13.8 bar)
    320-UI 0.754 GAL (2.854 Liter) 450 GPM (102 m³/hr.) 200 PSI (13.8 bar)


    Sanitation features
    • 316L stainless steel body, cover, and shaft
    • Easy disassembly for COP cleaning
    • Elastomers that comply with FDA requirements
    • Aseptic models available
    • Meets 3A sanitary standards

    Long-life features
    • Up to 200 psi (13.8 bar) pressure capability*
    • No bearings in product zone
    • Heavy duty bearing frame with large diameter shafts
    • Grease lubed bearings for positive lubrication of all bearing over entire speed, temperature and
    • pressure range
    • Non-galling Waukesha “88” alloy rotors standard; permits running at tighter clearances and pumping
    • a wide range of viscosities
    • Remanufacturing and Inspect and Advise programs to extend life and reduce costs

    Available options
    *High strength 17-4 PH shafts and hex cover nuts for higher pressure applications

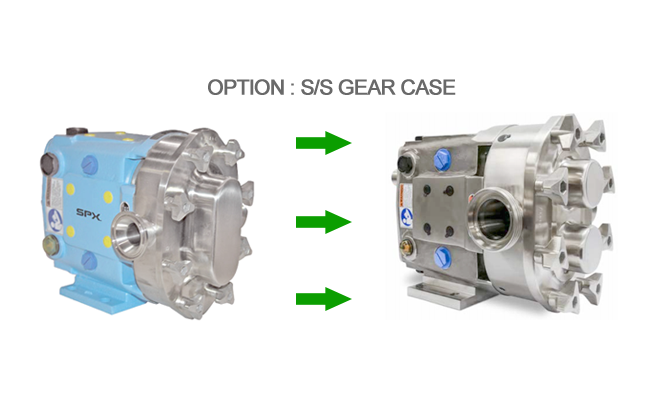

    • Stainless steel gear case
    • Stainless steel bearing retainers
    • Bearing isolators protect bearings from contamination
    • Body retaining screws
    • Steel-It paint
    • Single wing rotors for minimum damage of particulates.
    • Jacketed or vented covers
    • Rectangular flange inlet for high viscosity products
    • Tru-Fit® close coupled pump design

    Product applications

    Bakery
    - Batters
    - Flavorings
    - Frostings
    - Fruit Filings
    - Fats& Oils
    - Sweeteners
    - Yeast Slurry

    Beverage
    - Beer, Wort, Yeast
    - Soft Drinks
    - Juice
    - Fruit Concentrates
    - Fruit Drinks
    - Wine
    - High Fructose Corn Syrups (HFCS)



    Canning
    - Baby Foods, Soups, Stews
    - Tomato Paste/Sauces
    - Fruit Puree
    - Vegetables, Diced, Slurries
    - Puddings, Jams, Jellies
    - Salad Dressings, Mayonnaise

    Confectionery
    - Syrups
    - Cream Filings
    - Chocolate

    Cosmetics
    - Face Creams & Lotions
    - Hair Styling Gels & Liquids
    - Essential Oils
    - Dyes & Alcohols
    - Shampoos



    Dairy
    - Cream, Milk, Butter
    - Cheese Curd &Whey
    - Cotage Cheese
    - Yogurt

    Meat Packing
    - Meat-Emulsions
    - Ground Meats
    - Pet Foods
    - Ruffle & Caul Fat
    - Mechanically Deboned Meat (MDM)

    Aseptic
    - Tomato Pastes
    - Puddings
    - Waukesha Chery-Burel3

    Pharmaceutical/Health Care
    - Pill Pastes
    - Syrups
    - Extracts
    Emulsions
    Slurries
    Tooth Paste
