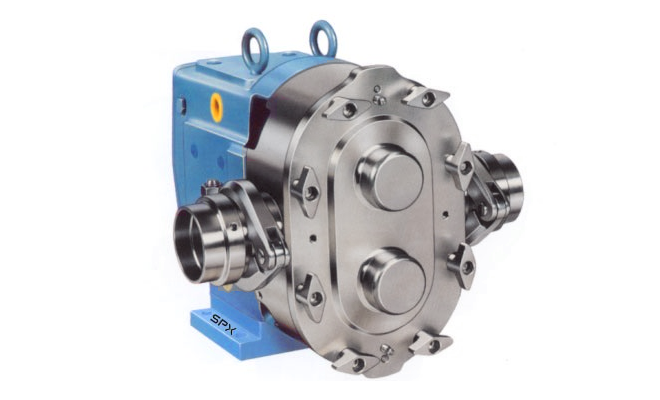

Universal 1 Series Aseptic Pumps





Live steam or sterile solution is circulated to ports,
cover and product seal areas, where bacteria might enter.

Features and Benefits
- 316 stainless steel body
- Large, rectangular inlet port
- Non-galling Waukesha "88" alloy rotors
- Maximum pressure: 200 psi (13.8 bar)*
- Temperature range:-40° F (-40° C) to 300° F (149° C)



Specifications

MODEL

DISPLACEMENT

NOMINAL  CAPACITY TO

INLET/  OUTLET

PRESSURE
PSI

MAX
RPM

033A
0.051 GAL. (0.193 Liter)
30 GPM (6.8 m³/hr.)
1" (25mm)
225 PSI (15.5 bar)
600
133A
0.205 GAL. (0.776 Liter)
120 GPM (27.3 m³/hr.)
3" (76mm)
225 PSI (15.5 bar)
600
223A
0.440 GAL. (1.666 Liter)
260 GPM (59.1 m³/hr.)
4" (102mm)
225 PSI (15.5 bar)
600
323A
0.616 GAL. (2.332 Liter)
360 GPM (81.8 m³/hr.)
6"(152mm)
225 PSI (15.5 bar)
600
