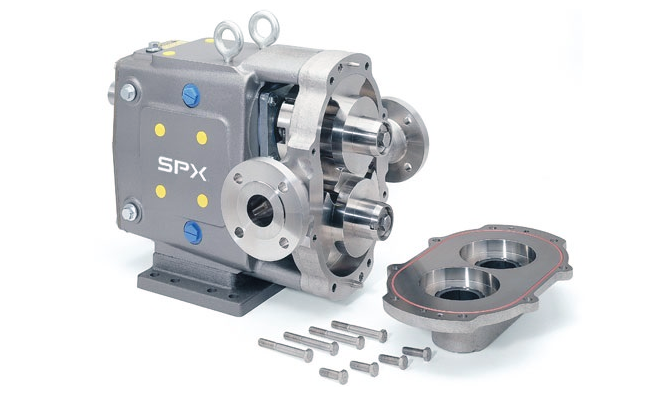

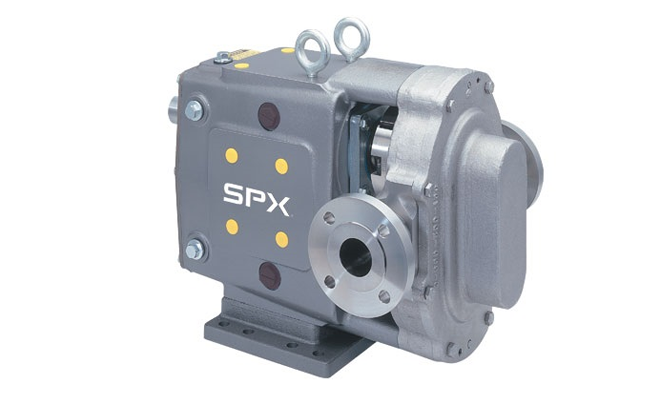

Universal 5000 Series





    Long-life engineering features. High volumetric efficiency and low shear.

    Features and Benefits
    - Non-galling Waukesha "88" alloy rotors standard
    - A variety of mechanical seals and packing available
    - Steel-it Paint standard
    - Maximum pressure: 200 psi (13.8 bar)
    - Temperature range: -40° F (-40° C) to 300° F (149° C)

    Long-life features
     • 200 psi (13.8 bar) pressure capability.
     • Heavy duty bearing frame.
     • Double tapered roller bearings on al models except 5040.
     • Grease lubed bearings for positive lubrication to al bearings over
       entire speed, temperature and pressure range.
     • Body retaining screws for maintaining mechanical seal loading and
       body position during inspection.
     • Steel-It Paint.
     • Remanufacturing Program to extend life and reduce costs.

     Available options
     • High strength 17-4 PH shafts for severe duty applications.
     • 300 lb & DIN flanges, and NPT port connections.
     • Stainless steel bearing retainers.
     • Bearing isolators protect bearings from contamination.
     • Jacketed or vented covers.
     • Waukesha (ISR) Integral Speed Reducers, eliminates coupling
       alignment and saves space.
     • Single, double, cartridge mechanical seals & packing.
     • Optional port sizes on 5040 thru 5060 models.
     • Side mount pedestals for vertical porting.
     • Hot and front face rotor clearances, for high temperature fluids.
     • Alloy 88 & Rulon cover bushings.
     • Ceramic coated packing sleeves.

     Installation flexibility
     • Bi-directional flow. Rotors, locked in place, rotate securely in either direction.
       No flow direction/shaft position specifications.
     • Versatile 3-Way mounting of gear case, including vertical alignment of ports.
     • Upper or lower shaft position.



    Specifications


    MODEL


    DISPLACEMENT  PER REVOLUTION


    NOMINAL  CAPACITY TO

    MAXIMUM  PRESSURE
    5040 0.060 Gal. (0.227 Liter) 36 GPM (8.2 m³/hr.) 200 PSI (13.8 bar)
    5050 0.153 Gal. (0.579 Liter) 90 GPM (20.4 m³/hr.) 200 PSI (13.8 bar)
    5060 0.254 Gal. (0.961 Liter) 150 GPM (34.1 m³/hr.) 200 PSI (13.8 bar)
    5070 0.440 Gal. (1.666 Liter) 260 GPM (59.1 m³/hr.) 200 PSI (13.8 bar)
    5080 0.754 Gal. (2.854 Liter) 450 GPM (102.2 m³/hr.) 200 PSI (13.8 bar)



    Universal 5000 Series Typical product applications

    Bakery
    Batters
    Flavorings
    Frostings
    Fruit Filings
    Fats& Oils
    Sweeteners
    Yeast Slurry

    Beverage
    Beer, Wort, Yeast
    Soft Drinks
    Fruit Concentrates
    Fruit Drinks

    Dairy
    Cream, Milk
    Cheese Curd &Whey
    Cottage Cheese
    Yogurt




    Confectionery
    Syrups
    Cream Filings
    Chocolate

    Cosmetics
    Face Creams & Lotions
    Hairstyling Gels & Liquids
    Essential Oils
    Dyes & Alcohols


    Canning
    Baby Foods, Soups, Stews
    Tomato Paste
    Fruit Puree
    Vegetables, Diced, Slurries
    Puddings, Jams. Jellies
    Salad Dressings, Mayonnaise

    Meat Packing
    Meat-Emulsions
    Ground Meats
    Pet Foods
    Ruffle & Caul Fat

    Pharmaceutical
    Pill Pastes
    Syrups
    Extracts
    Emulsions
    Slurries

    Chemical / lndustrial
    Solvents
    Fuels
    Oils& Lubricants
    Resins &Polymers
    Soaps
    Sludge's
