The Widethroat W Range has been designed to handle highly viscous materials, such as sludges, slurries, thick non-flowing pastes and
dewatered sludge cake with viscosities up to 1,000,000cP.

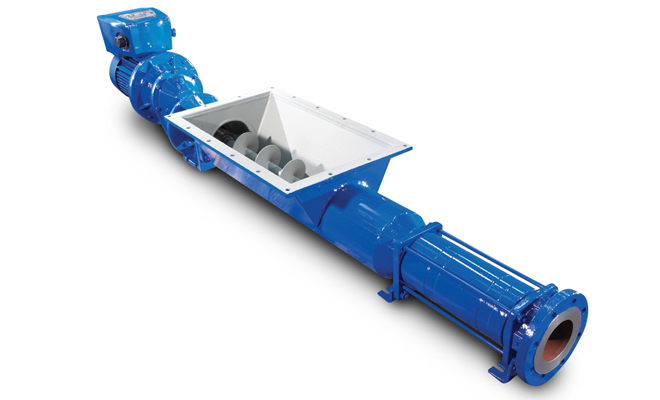

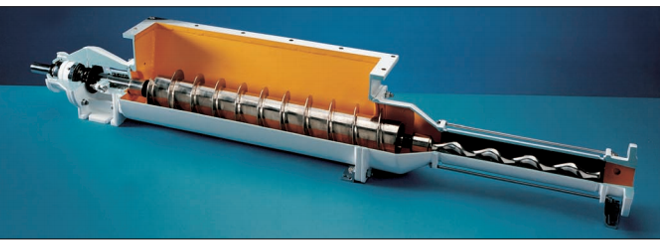

This transfer pump consists of an enlarged rectangular inlet with a screw conveyor to assist the product into the pumping element.
Options are available to modify the inlet with either large diameter augers, integral bridge breakers or both.
| Capacity |
Pressure |
Temperature |
| m³/h |
Up to 215 |
bar |
Up to 48 |
°C |
-10 up to 100 |
| gpm |
Up to 946 |
psi |
Up to 700 |
°F |
14 up to 212 |
Applications
| - Sludges |
- Slurries |
| - Thick non-flowing pastes |
- De-watered sludge cake |
| - Meat purées |
- Bentonite slurry |
| - Pharmaceutical filter cake |
- Chicken offal |
| - Potato waste slurry |
- Highly viscous materials |
Features & Benefits
- Provides a process efficient method of handling sludges with high solids content
- Different design configurations to suit the application, dry solids approaching 40% can be handled when fitted with integral bridge
- breakers or large augers
- Facilitates ease of maintenance through the simple design and use of a plug in shaft
- Designed to run at relatively slow speeds to minimise damage to shear sensitive products
- Pumps are available as monobloc or bareshaft
- Can be supplied with a Muncher, horizontally mounted onto the hopper, to assist solids reduction prior to pumping
- Pumps can be supplied to comply with the ATEX Directive 94/9/EC

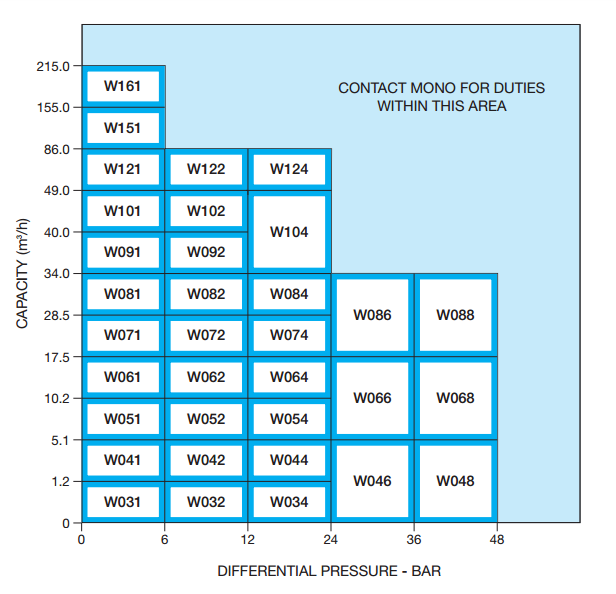

Performance Data
Download Brochure (.PDF)
|
