“A competitively priced
progressing cavity
pump,
with a compact
construction and
maximum performance
characteristics.”
The Compact C Range progressing cavity pump has been manufactured by Mono to offer you a transfer pump
designed to fit into
compact
spaces, whilst reliably performing to the maximum duty requirements of your
application. Features include good suction lift
capability of over
8 metres, positive displacement for process
control and variable speed for accurate dosing.
| Capacity |
Pressure |
Temperature |
| m³/h |
Up to 440 |
bar |
Up to 24 |
°C |
-10 up to 100 |
| gpm |
Up to 1937 |
psi |
Up to 350 |
°F |
14 up to 212 |
Applications
| Domestic and industrial sewage |
Hydrated lime slurry |
| Sludge |
Shear sensitive latex emulsion |
| Milk curds |
Sauces |
| Fruit juices |
Industrial chemicals |
| Detergents |
Coating clays |
| Gypsum and silicate |
Paper stocks |
| Agricultural slurries |
Starch slurries |
Features & Benefits
- Available in cast iron or stainless steel, with a choice of rotor and stator materials
- A high pressure pump eliminating the need for a series of pumps when pumping over long distances or with high head requirements
- Available in standard geometry or extended pitch
- Gentle pumping action minimises shear and crush damage
- Inspection cover available for applications where rag content is a problem
- The pump can be supplied with a square inlet and conveyor to assist viscous slurries into the pumping element
- Low running speeds - ideal for abrasive applications
- Pumps can be supplied to comply with the ATEX Directive 94/9/EC

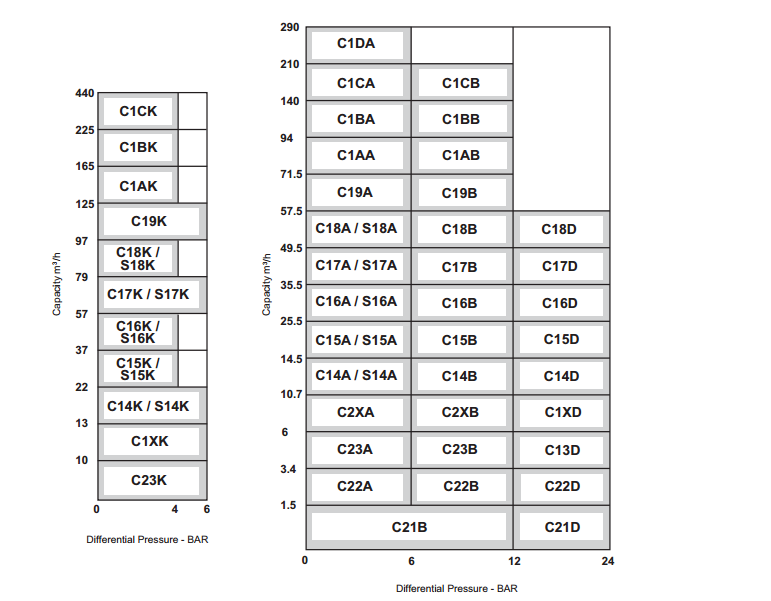

Performance Data
Download Brochure (.PDF)
|
