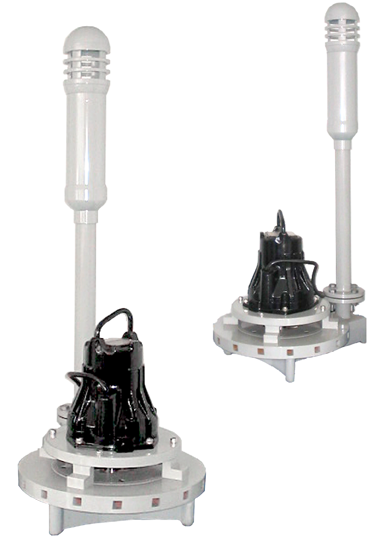

The FLYMARATOR is a fine-bubble submersible type aerator specially designed for use in: -
• Activated Sludge Systems
• Regeneration of polluted surface water such as lakes and canals
• Fish farms
• Oxidation process for water treatment plants
Years of intensive research have a companied the development of the FLYMARATOR.

The result is a sturdy, robust unit, which combines high oxygenation efficiency with thorough mixing and propulsion of the liquid.

ADVANTAGES
The FLYMARATOR has some distinct advantages over other aerators

1. Its construction is sturdy and simple:
• Easy to install
• Easy to maintain
• Easy to transport

Thus, the FLYMARATOR can be added as an “oxygen booster” to existing installations which are temporary overloaded or
under maintenance.

2. It's submersible:
• No aerosol emission, with the related risks of airborne pollution
• Silence of operation
• No superstructure required
• No risk of freezing

3. It has mixing capacity:
• Homogenization of the media
• Break-down of the organic pollution
• Superior
• factor

OPERATION
The FLYMARATOR operates completely submerged in the liquid. The impeller rotates in a clockwise direction, driving the surrounding liquid and accelerating it radially outwards. At the same time a vacuum is created, which fills with air drawn from the atmosphere via the air supply pipe. The air is thoroughly mixed with the liquid before being discharged through the diffuser channels at a high velocity, causing masses of fine air bubbles to be formed and ensuring optimum oxygen retention time and high efficiency. Operation requires minimal skills.

DESIGNED FOR MULTIPLE FIELDS OF APPLICATIONS
• Housing Communities
• Fish Farms
• Parks, Golf Courses
• Condominiums, Office Buildings
• Farms
• Hospitals
• Factories

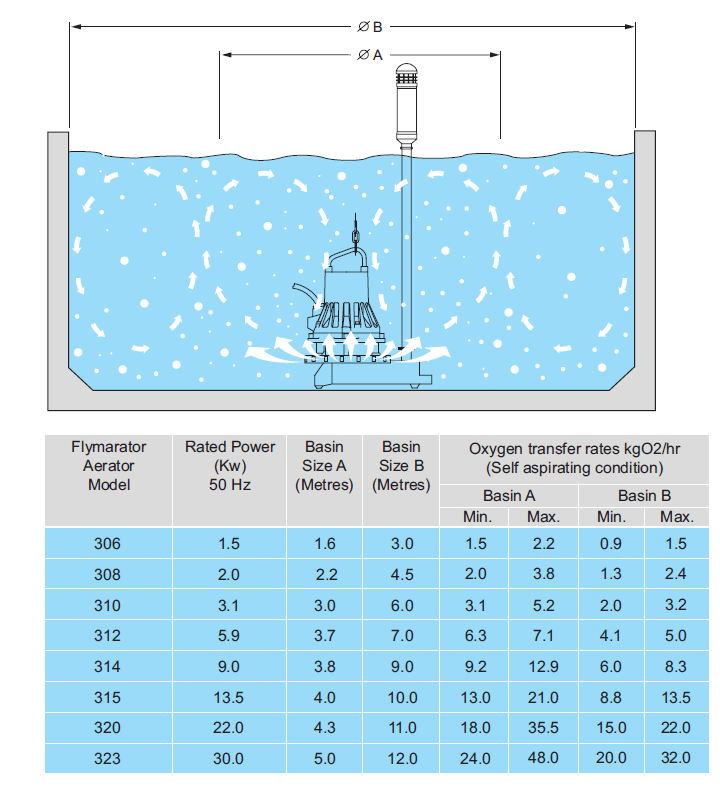

PERFORMANCE

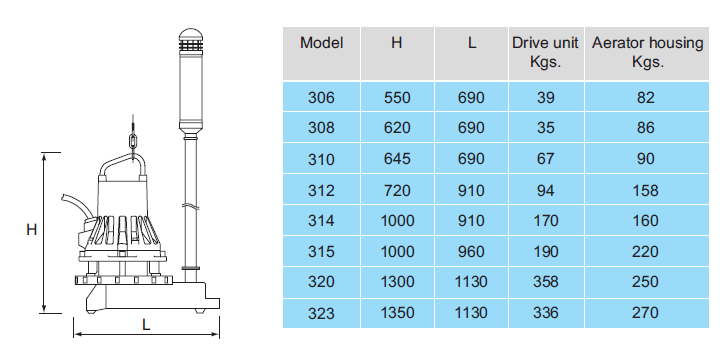

OVERALL DIMENSIONS
