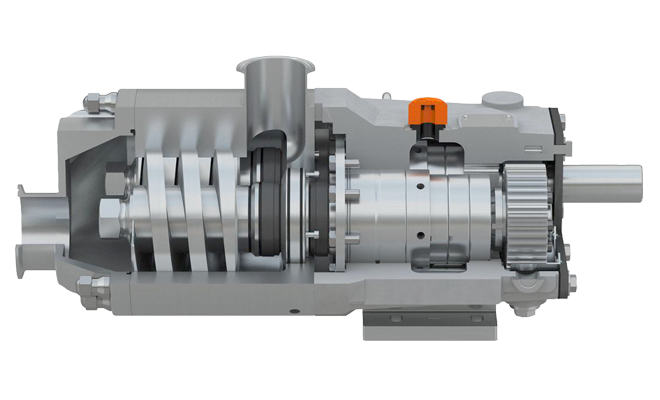

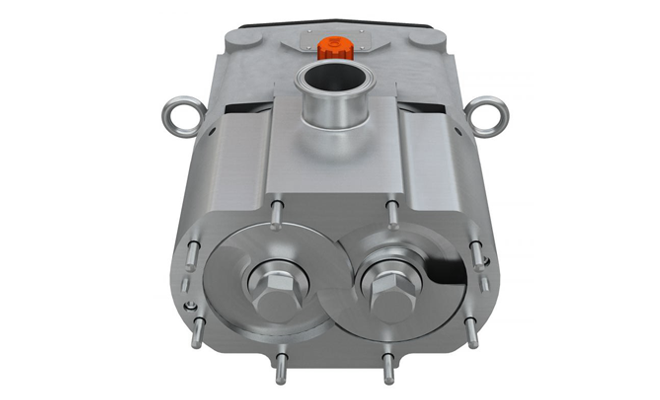

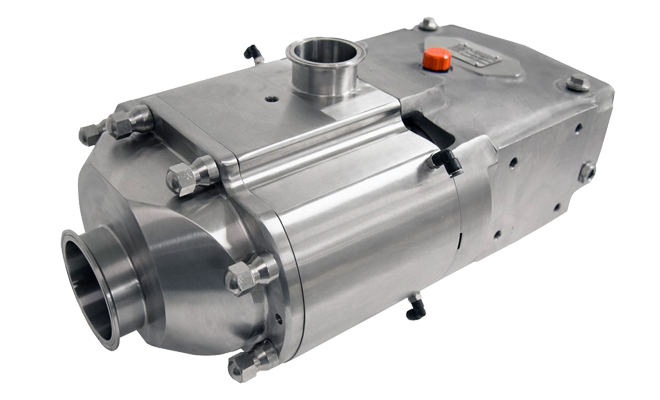

Universal Twin Screw Pumps


English Version	Thai Version

You can count on Universal TS Series pumps for :

RELIABLE PERFORMANCE -
Screws made from Waukesha Alloy 88 non-galling material allow the pump to run through incidental contact and reduce risk of pump
damage if screws make contact

GENTLE PRODUCT HANDLING -
Pumps large particulates without degradation

RESPONSIVE SERVICE –
Extensive global distribution network with certified repair centers provide quick response times for parts and service

EASY MAINTENANCE –
Front loaded access to product side seals

PROCESS FLEXIBILITY –
Low inlet pressure requirement and a wide range of operating speeds allow for multiple duties including process and CIP supply.
Bi-directional flow capability without making modifications to the pump.

SMOOTH OPERATION –
Reduces slip pulse in low inlet pressure, low viscosity, and high pressure conditions

REDUCED NOISE LEVELS –
Operating principle virtually eliminates pressure fluctuations

Features
• Up to 375 psi (25.5 bar) pressure capability
• Special rotor nut designed for extended service
• No bearings in the product zone
• Large diameter 17-4 PH shafts for greater strength and stiffness. Helps reduce vibration and extends seal life
• Standard heavy duty stainless steel bearing frame
• Built with high precision needle roller element bearings
• Oil-lubricated bearings for positive lubrication over entire speed, temperature and pressure range
• Body retaining screws for maintaining mechanical seal contact during inspection
• Unique mechanical seal design utilizes common parts for inner and outer seal seats and rotary seals in a compact design

Sanitary Features
• CIP capability standard. Pump body and cover are free draining
• Screw/shaft connection sealed from product zone
• Single and Double mechanical seal options
• All models include seal flush ports for optional double seal
• Steam-In-Place capable
• Stainless steel gear case standard

Installation Features
• Indexed splined shafts and screws provide positive engagement and ease installation of the screws
• Capable of bi-directional flow without having to change bearings or body orientation
• Non-galling Waukesha “88” alloy screws standard; permits running at tighter clearances and pumping a wide range of viscosities
• 316L stainless steel pump body and cover
• Product seal and barrier seal parts are identical; simplify assembly, reduce number of unique components
• All pumps are performance tested prior to shipment

Specifications

MODEL	SCREW PITCH	DISPLACEMENT PER REVOLUTION	NOMINAL CAPACITY (MAX)	COVER PORT	BODY PORT	MAXIMUM PARTICULATE	MAXIMUM PRESSURE(MAX)	MAXIMUM RPM	TEMP RANGE
015-UTS	16.5	0.02 Gal. (0.08 Liter)	70 GPM (265 LPM)	2" (51mm)	1.5" (38mm)	0.33" (8mm)	375 PSI (25.5 bar)	3500	-40°F (-40°C) to 300° (149°C)
	33	0.03 Gal. (0.11 Liter)	105 GPM (398 LPM)			0.65" (18mm)
	44	0.04 Gal. (0.15 Liter)	140 GPM (530 LPM)			0.44"* (11mm)
030-UTS	16.8	0.03 Gal. (0.11 Liter)	93 GPM (352LPM)	2.5" (64mm)	2" (51mm)	0.33" (8mm)	375 PSI (25.5 bar)	3100
	28	0.05 Gal. (0.19 Liter)	155 GPM (587 LPM)			0.55" (14mm)
	42	0.08 Gal. (0.30 Liter)	248 GPM (939 LPM)			0.83" (21mm)
130-UTS	36.7	0.12 Gal. (0.45 Liter)	300 GPM (1136 LPM)	4" (102mm)	2.5" (64mm)	0.72"* (18mm)	375 PSI (25.5 bar)	2500
	55	0.18 Gal. (0.68 Liter)	450 GPM (1703 LPM)			1.09" (28mm)
	73.4	0.24 Gal. (0.91 Liter)	600 GPM (2271 LPM)			0.72" (18mm)
220-UTS	45	0.30 Gal. (1.14 Liter)	600 GPM (2271 LPM)	4" (102mm) or 6" (152mm)	4" (102mm) or 6" (152mm)	0.89" (22mm)	375 PSI (25.5 bar)	2000
	60	0.40 Gal. (1.51 Liter)	800 GPM (3028 LPM)			1.18" (30mm)
	90	0.61 Gal. (2.31 Liter)	1220 GPM (4618 LPM)			1.77" (45mm)

Product applications

Food and Beverage
- Soups, Stews, Tomato Paste
- Vegetables, Dressings
- Chocolate, Fats & Oils
- Batters, Cream Fillings
- Brewery, Wort
- Soft/Fruit Drinks
- Meat Processing

Dairy
- Cream, Milk
- Cheese Curd & Whey
- Cottage Cheese
- Yogurt

Pharmaceutical/Cosmetics
- Pill Pastes
- Syrups, Extracts, Slurries
- Face Creams & Lotions
- Hair Styling Gels & Liquids
- Dyes & Alcohols
- Soaps
- Cosmetics

Chemical/Industrial
- Solvents, Paints
- Fuels
- Resins, Polymers & Sludges
- Oil & Lubricants
