“A range of technically
engineered progressing
cavity pumps, designed
to give least whole life
costs and reduced spares
requirements.”
A range of technically engineered high pressure pumps, designed to give least whole life costs and reduced
spares requirements.

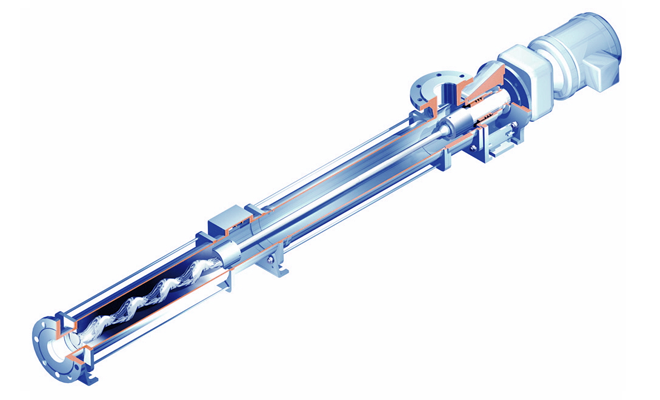

The bloc construction of the Epsilon range has reduced overall dimensions and
incorporates Mono's unique Flexishaft® drive
transmission, with a 10 year warranty.
The option of an inspection cover permits removal of rags when this is an issue and the Epsilon range has shared
componentry
with the popular Compact C transfer pump, helping customers and stockists to reduce
the inventory
of replacement parts.
Capacity |
Pressure |
Temperature |
m³/h |
Up to 420 |
bar |
Up to 72 |
°C |
-10 up to 100 |
gpm |
Up to 1,849 |
psi |
Up to 1050 |
°F |
14 up to 212 |
Applications

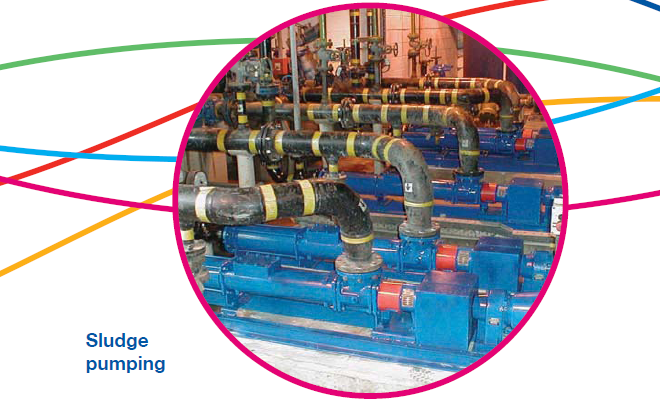

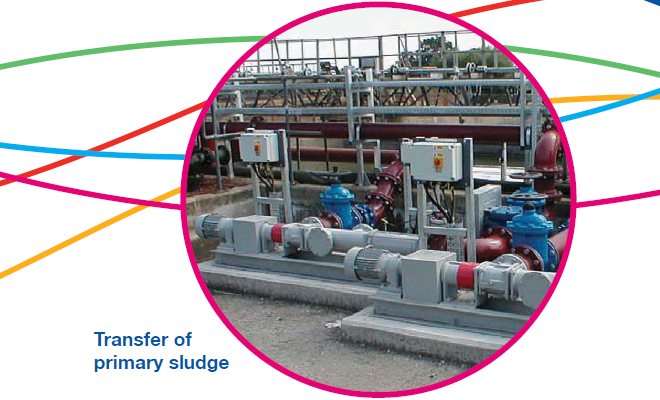

| - Primary and secondary sludges |

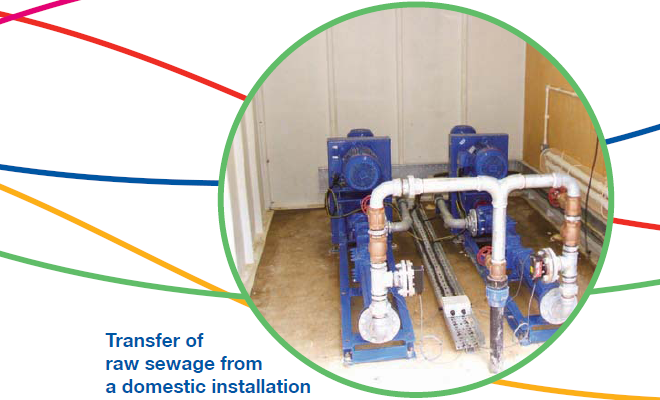

- Domestic and industrial sewage |
| - Hydrated lime slurry |
- Dewatered sludge cake |
| - Shear sensitive latex emulsion |
- Milk curds |
| - Sauces |
- Fruit juices |
| - Crude oil/condensate/produced water |

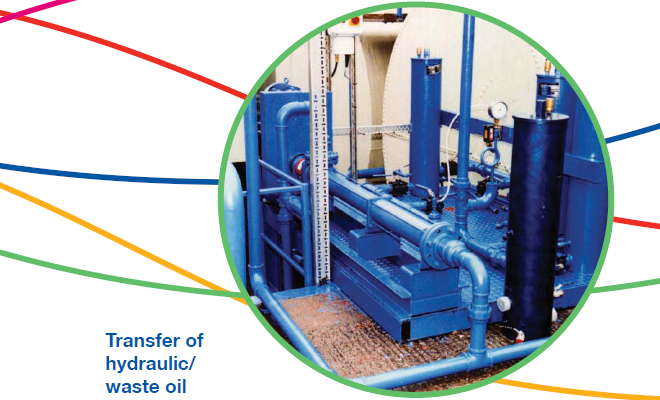

- Hydraulic oil |
| - Waste oil |

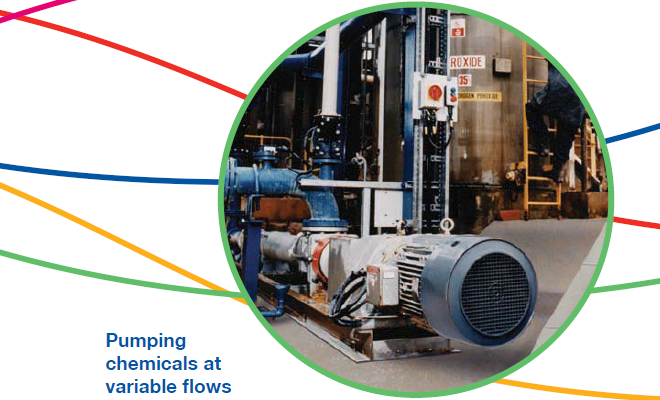

- Industrial chemicals and detergents |
| - Starch slurries |
- Coating slurries |
| - Gypsum and silicate |
- Paper stocks |
| - Agricultural slurries |
- Mine de-watering |

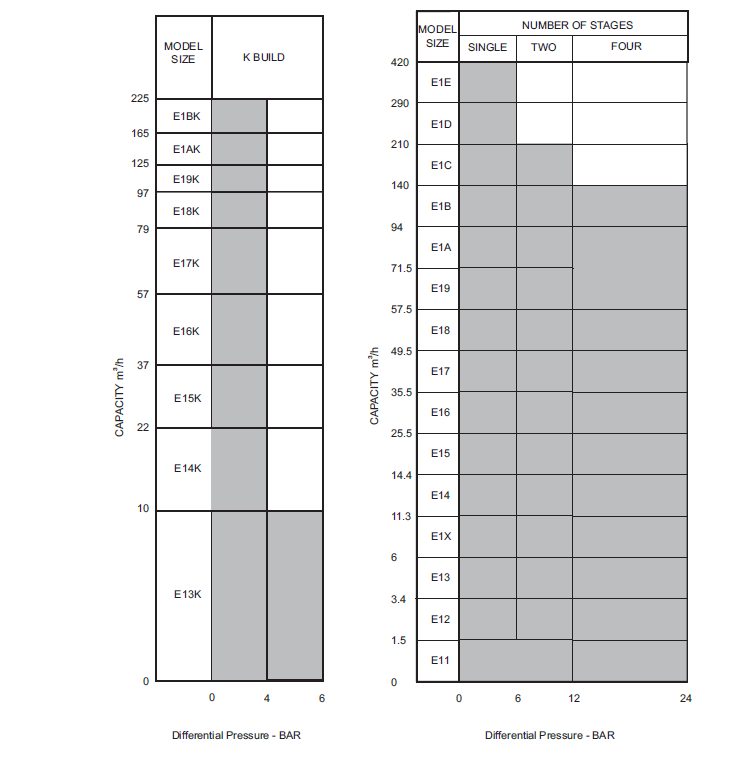

Performance Data
Download Brochure (.PDF)
|
