Hy~Line+ Hygienic Rotary Lobe Pumps

    Previous line
    Next line

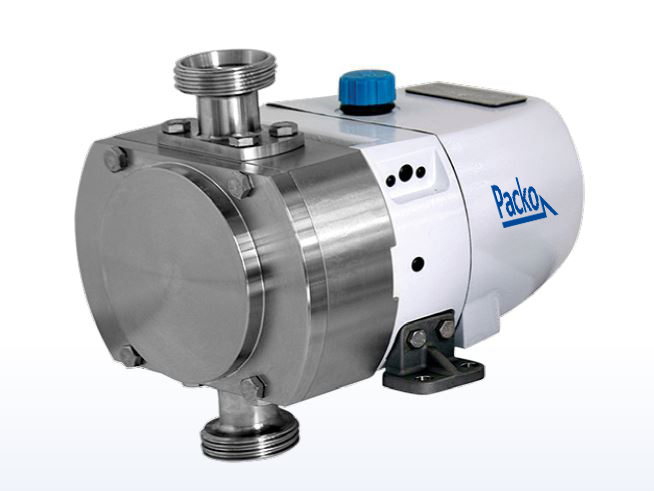

    JABSCO by Packco Hy~Line+ Rotary Lobe pumps are robust, durable machines designed for long life in demanding applications.

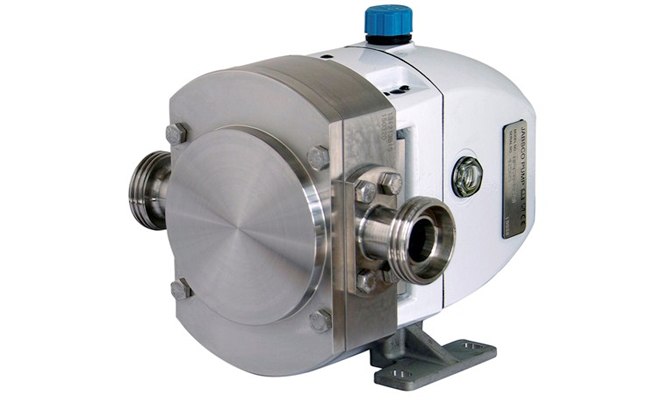

    Modular construction and interchangeable parts the Hy~Line+ range of pumps can be installed horizontally or vertically and are available with a wide range of seal and port configurations.

    Model No.: HP Series
    - Flow rates up to 65.34m³/hr (18.15 litres/second)
    - Pressures up to Up to 15 bar (217 psi)
    - Temperature range: -30ºC to +140ºC
    - Liquid viscosity range: 1 to 1,000,000 centipoise
    - Hygienic - American 3A and EHEDG standards
    - Gentle pumping action suits viscous, delicate and particle-laden liquids
    - Easy to clean, easy to maintain
    - AISI 316 stainless steel construction

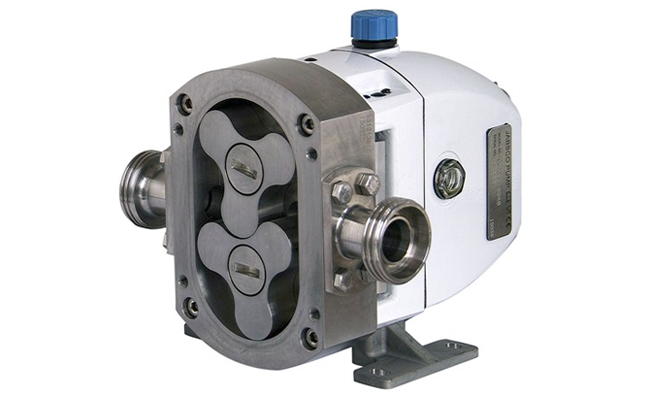

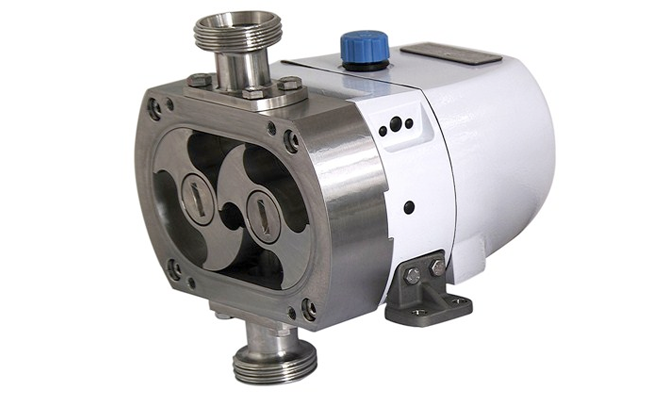

    - Bi-wing Scimitar or Tri-Lobe rotors.

    Applications



    - Food Ingredients - Brewing and Soft Drinks - Filling
    - Confectionery and Bakery - Personal Care Products - Filtration
    - Milk and Dairy Products - Pharmaceuticals - Circulation
    - Cosmetics - Abrasive suspensions - Tankers loading/Unloading.
    - Chemicals - Transfer
    - Meat Products - Process


    11 Models Available

    HP32 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 19mm (3/4”)
    - Port Size inlet / outlet - Enlarged 25mm (1")
    - Displacement 3.5 litres  (0.92 US gallons) @ 100 revs
    - Flow Rate 52 lpm (13.7 US gpm)
    - Operating Pressure 15 bar (217 psi)
    - Speed 1500 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 8 (kg) 18 (lb)

    HP42 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 25mm (1")
    - Port Size inlet / outlet - Enlarged 38mm (1-1/2")
    - Displacement 12.3 litres (3.25 US gallons) @ 100 revs
    - Flow Rate 123 lpm (32.5 US gpm)
    - Operating Pressure 15 bar (217 psi)
    - Speed 1000 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 18 (kg) 40 (lb)

    HP52 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 38mm (1-1/2")
    - Port Size inlet / outlet - Enlarged 50mm (2")
    - Displacement 26.5 litres (7.00 US gallons) @ 100 revs
    - Flow Rate 265 lpm (70.0 US gpm)
    - Operating Pressure 15 bar (217 psi)
    - Speed 1000 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 32 (kg) 70 (lb)

    HP62 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 63mm  (2 -1/2")
    - Port Size inlet / outlet - Enlarged 76mm (3")
    - Displacement 64 litres (16.9 US gallons) @ 100 revs
    - Flow Rate 461 lpm (121.8 US gpm)
    - Operating Pressure 15 bar (217 psi)
    - Speed 720 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 61 (kg) 134 (lb)

    HP72 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 76mm (3")
    - Port Size inlet / outlet - Enlarged 100mm (4")
    - Displacement 123 litres (32.5 US gallons) @ 100 revs
    - Flow Rate 836 lpm (220.8 US gpm)
    - Operating Pressure 15 bar (217 psi)
    - Speed 680 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 125 (kg) 275 (lb)

    HP76 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 127mm (5")
    - Port Size inlet / outlet - Enlarged 152mm (6")
    - Displacement 301.5 litres (79.65 US gallons) @ 100 revs
    - Flow Rate 1809 lpm (477.9 US gpm)
    - Operating Pressure 5 bar (72 psi)
    - Speed 600 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 165 (kg) 363 (lb)


    HP34 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 25mm (1")
    - Port Size inlet / outlet - Enlarged 38mm (1-1/2")
    - Displacement 7 litres (1.85 US gallons) @ 100revs
    - Flow Rate 105 lpm  (27.7 US gpm)
    - Max. Pressure 8 bar (116 psi)
    - Max. Speed 1500 (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 10 (kg) 22 (lb)

    HP44 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 38mm (1-1/2")
    - Port Size inlet / outlet - Enlarged 50mm (2")
    - Displacement 20.4 litres (5.39 US gallons) @ 100 revs
    - Flow Rate 204 lpm (53.9US gpm)
    - Operating Pressure 8 bar (116 psi)
    - Speed 1000 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 20 (kg) 44 (lb)

    HP54 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 50mm (2")
    - Port Size inlet / outlet - Enlarged 76mm (3")
    - Displacement 45.5 litres (12.02 US gallons) @ 100 revs
    - Flow Rate 455 lpm (120.2 US gpm)
    - Operating Pressure 8 bar (116 psi)
    - Speed 1000 max (rpm)
    - Operating temperature  -30 to 140°C (-22 to 284°F)
    - Weight 35 (kg) 77 (lb)

    HP64 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 76mm (3")
    - Port Size inlet / outlet - Enlarged 100mm (4")
    - Displacement 95 litres (25.10 US gallons) @ 100 revs
    - Flow Rate 684 lpm (180.7 US gpm)
    - Operating Pressure 8 bar (116 psi)
    - Speed 720 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 65 (kg) 143 (lb)

    HP74 Hy~Line+ Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 100mm (4")
    - Port Size inlet / outlet - Enlarged 127mm (5")
    - Displacement 205 litres (54.15 US gallons) @ 100 revs
    - Flow Rate 1230 lpm (324.9 US gpm)
    - Operating Pressure 8 bar (116 psi)
    - Speed 600 max (rpm)
    - Operating temperature -30 to 140°C (-22 to 284°F)
    - Weight 145 (kg) 319 (lb)
