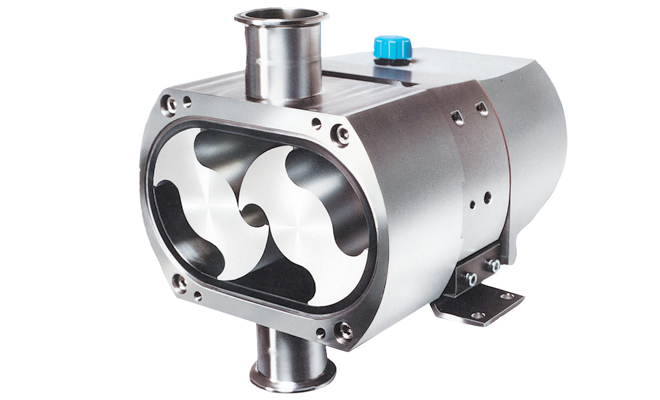

55 Series & Ultima Ultra Hygienic Rotary Lobe Pumps

    Previous line
    Next line




    For the very highest standards of sterile containment cleaning in-place (CIP) and steam-sterilising (SIP)

    Model No.: 55 Series & Ultima
    - Flow rates up to 44m³/hr (12 litres/second)
    - Pressures up to Up to 20bar (290 psi)
    - Temperature range: -30ºC to +140ºC
    - Liquid viscosity range: 1 to 1,000,000 centipoise
    - Ports: ½" to 4" (13mm to 100mm)

    Specifications
    - Body Materials 316L Stainless Steel
    - Rotor 316L Stainless Steel
    - Port Type All US and European standards
    - Seal Front-loaded single mechanical face-type seals of hygienic design. Materials include carbon and silicon carbide.
    Low-pressure flush seals use the same single mechanical seal with an additional housing. Double mechanical seals use all the
    components from single seals.
    - Bearings High specification taper roller bearings
    - Approvals EHEDG CIP, SIP and Bacterial tightness protocols; 3A sanitary standards 18-03 and 02-11; uses materials that
    meet FDA title 21, section 177.1550

    Applications
    Biotechnology Sterile pharmaceuticals Ultra-hygienic food processing Separation equipmentAseptic manufacturing Multi-product facilities
    Sanitary/hygienic production Sampling

    9 Models Available

    55210 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 1/2" (12.5 mm)
    - Displacement US Gallons (litres) 0.26 Gallons (1 litre) @ 100 revs
    - Flow Rate US gallons (litres) 4.2 GPM (16 LPM)
    - Operating Pressure 203 psi (14 bar)
    - Speed 1500 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 191 x 114 x 135 (mm)
    - Weight 8 (kg) 18 (lb)

    55320 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 3/4" (19 mm)
    - Displacement US Gallons (litres) 0.77 Gallons (2.9 litre) @ 100 revs
    - Flow Rate US gallons (litres) 11.6 GPM (44 LPM)
    - Operating Pressure 290 psi (20 bar)
    - Speed 1500 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 264 x 145 x 168 (mm)
    - Weight 19 (kg) 42 (lb)

    55420 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 1" (25 mm)
    - Displacement US Gallons (litres) 1.77 Gallons (6.7 litre) @ 100 revs
    - Flow Rate US gallons (litres) 17.7 GPM (67 LPM)
    - Operating Pressure 290 psi (20 bar)
    - Speed 1000 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 302 x 168 x 191 (mm)
    - Weight 26 (kg) 57 (lb)

    LU42 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 1" (25mm)
    - Port Size inlet / outlet - Enlarged 1 1/12" (38mm)
    - Displacement US Gallons (litres) 3.25 Gallons (12.3 litre) @ 100 revs
    - Flow Rate US gallons (litres) 32.5 GPM (123 LPM)
    - Operating Pressure 217 psi (15 bar)
    - Speed 1000 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 285 x 223 x 182 (mm)
    - Weight 23 (kg) 51 (lb)

    LU44 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 1 1/2" (38mm)
    - Port Size inlet / outlet - Enlarged 2" (50mm)
    - Displacement US Gallons (litres) 5.39 Gallons (20.4 litre) @ 100 revs
    - Flow Rate US gallons (litres) 53.9 GPM (204 LPM)
    - Operating Pressure 116 psi (8 bar)
    - Speed 1000 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 301 x 223 x 182 (mm)
    - Weight 25 (kg) 55 (lb)

    LU52 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 1 1/2" (38mm)
    - Port Size inlet / outlet - Enlarged 2" (50mm)
    - Displacement US Gallons (litres) 7.00 Gallons (26.5 litre) @ 100 revs
    - Flow Rate US gallons (litres) 70 GPM (254 LPM)
    - Operating Pressure 217 psi (15 bar)
    - Speed 1000 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 386 x 249 x 208 (mm)
    - Weight 38 (kg) 84 (lb)

    LU54 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 2" (50mm)
    - Port Size inlet / outlet - Enlarged 3" (76mm)
    - Displacement US Gallons (litres) 12.02 Gallons (45.5 litre) @ 100 revs
    - Flow Rate US gallons (litres) 120.2 GPM (437 LPM)
    - Operating Pressure 116 psi (8 bar)
    - Speed 1000 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 414 x 259 x 213 (mm)
    - Weight 41 (kg) 90 (lb)

    LU62 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Reduced 2" (50mm)
    - Port Size inlet / outlet - Standard 2 1/2" (63mm)
    - Port Size inlet / outlet - Enlarged 3" (76mm)
    - Displacement US Gallons (litres) 16.9 Gallons (64 litre) @ 100 revs
    - Flow Rate US gallons (litres) 121.8 GPM (461 LPM)
    - Operating Pressure 217 psi (15 bar)
    - Speed 720 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 463 x 328 x 249 (mm)
    - Weight 70 (kg) 154 (lb)

    LU64 Ultra Hygienic Rotary Lobe Pump
    - Port Size inlet / outlet - Standard 3" (76mm)
    - Port Size inlet / outlet - Enlarged 4" (100mm)
    - Displacement US Gallons (litres) 25.1 Gallons (95 litre) @ 100 revs
    - Flow Rate US gallons (litres) 180.7 GPM (684 LPM)
    - Operating Pressure 116 psi (8 bar)
    - Speed 720 max (rpm)
    - Operating temperature -22 to 284°F (-30 to 140°C)
    - Dimensions (H x W x D) 492 x 328 x 254 (mm)
    - Weight 75 (kg) 165 (lb)
